Space-saving design provides reliable, high-intensity illumination with 180° visibility

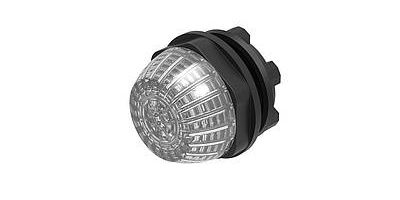

EAO, the expert partner for innovative, intuitive and reliable Human Machine Interfaces (HMIs), offers the Series 14 Indicator Compact.  Safe and reliable status indication is a necessity for applications within machinery, industrial automation, processing, food and packaging equipment, robotics and specialty vehicles.  These indicator units are the ideal solution by providing high-intensity, homogenous LED illumination and 180° all-around visibility while packaged in a compact, space-saving design.

With a minimal back panel depth of just 9.5mm, a small outer diameter of 33.5mm and a polyamide seal, Series 14 Indicator Compact units function reliably in confined spaces. Additionally, installation is made easy with connectivity through push-in-terminals (PIT).

The Series 14 Indicator Compact is ideal for harsh, industrial environments due to robust front protection (up to IP69K) and IK07 impact resistance. It provides safe and reliable illumination for more than 50,000 operating hours in both interior and exterior locations, as well as applications that experience increased levels of humidity or extreme temperature fluctuations.

These units can handle an operational voltage range between 14 and 32 VAC/DC, with a current consumption of less than 50mA, and feature a range of customization options including colors, connectors and cables.

Key advantages of the Series 14 Indicator Compact:

  • High-intensity illumination
  • Long service life of more than 50,000 operating hours
  • Compact, space-saving design
  • Domed lens provides 180° all-around visibility
  • Easy mounting with reliable PIT terminal
  • IP69K Protection and IK07 impact resistance



To learn more about the Series 14 Indicator compact please visit www.eao.com.
